FLANGE EARTHING JUMPERS
Flange Earthing Jumpers

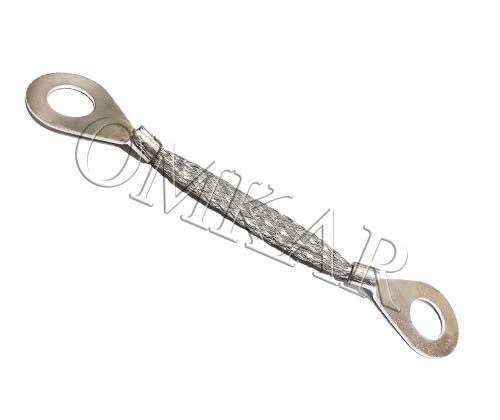

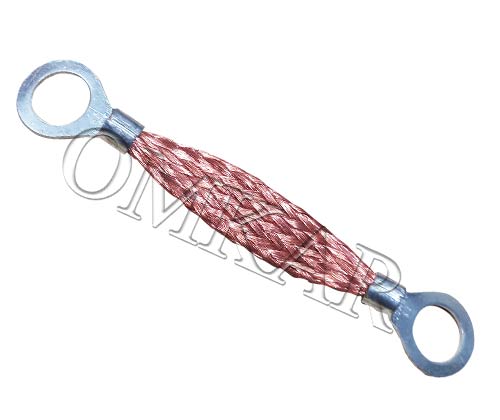

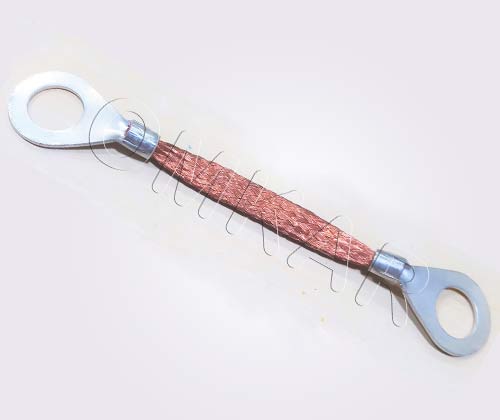

Flange Earthing Jumpers are manufactured from high quality ETP grade copper wires, they are also known as Earth Continuity Strap, Flange Bonding Jumpers, Copper Jumpers, Flange Jumpers, Bonding Jumper, Grounding Jumpers, and Earthing Jumpers. Copper wires are multi Strand Braided or Stranded as per customers unique requirement and then cut to specific lengths & crimped with proper copper lugs or copper connectors to manufacture these jumpers. These Jumpers are flexible in nature it can bend at any degree and are most convenient for installation so also known as Flexible Jumpers.

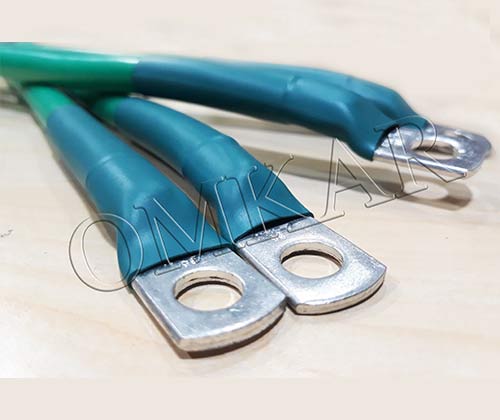

Surface of application of Copper Jumpers is usually other than copper, so to avoid metal corrosion terminals are always tin plated. Connecting Copper Braids are Bare, Tinned or Insulated as per requirement.
At OMKAR we have Widest Range of Flange Earthing Jumpers manufactured as per Standard or Customized design.
| Manufacturing Range | |
|---|---|
| Standard Flange Class | #150 , # 300, #600, #900 |
| Standard Flange Size | 1/2 " to 16 " |
| Standard Length | 100 mm to 600 mm |
| Standard Hole Size | 8 mm to 53 mm |
| Standard Type | Bare Jumper , Tin Jumper , Insulated Jumper |
| Braid Area Option | 2.5 sq. mm to 25 sq. mm |
| Terminal Thickness Option | 1 mm to 3 mm |
